Bộ điều khiển máy CNC 3 4 5 trục XC809D

Group this function can

Number of controlled axes

3 ~ 6 axis ( X , Y , Z , A , B , C)

Number of linkage axes

Full linkage

Tool magazine

Support, need to edit the magazine code

Spindle

2 analog spindles , of which spindle 1 is a digital spindle ( occupies a digital axis )

Spindle monitoring

Have

Minimum instruction unit

0.001 mm

Maximum command value

± 99999999 × minimum command unit

Rapid feed rate

30000 mm / min

Rapid feed rate

F0, 25%, 50%, 75%, 100%

Pulse mode

1 : direction + pulse 2 : quadrature pulse (if supported by the driver, recommended, stronger anti-interference)

Maximum frequency

100Khz, 200Khz, 500KHz can be set. ( 500KHz can only be realized in the orthogonal output mode of all axes)

Feed speed override

0 ～ 150%

Electronic gear ratio

1 to 65535: 1 to 65535

Automatic acceleration and deceleration

Have

High-speed small line look-ahead algorithm

Have

Trial machining by handwheel

Have

Positioning

G00 ( Possible for linear interpolation positioning)

Imputation

Straight line ( G01) , circular arc ( G02 / G03 / G12) , spiral interpolation

Return to reference point

Automatic reference position return ( G28)

LCD

7 -inch TFT LCD screen with 800 × 480 resolution

MDI software key

8 Ge

Single step feed

x1 , x10 , x100

Communication Interface

U disk interface

External handwheel interface

Have

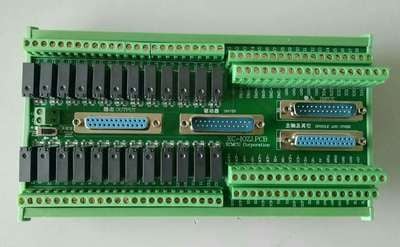

I / O interface

24/24 ( expandable to 96/96)

Pause (seconds)

Have

Exact stop status

Have

Exact stop

Have

Storage trip check

Have

MDI operation

Yes, support multi-stage operation

Reset

Have

Jump switch

Have

Single stage operation

Have

Program protection switch

Have

Self-diagnostic function

Have

Emergency stop

Have

power supply

Single-phase AC220V + 10% -15% , 50Hz ± 1Hz

Coordinate System

Machine coordinate system ( G53) , workpiece coordinate system ( G92 , G54 ～ G59) , local coordinate system ( G52) , coordinate system plane designation

Automatic coordinate system setting

Have

Decimal point input

Have

Auxiliary assist function can

Auxiliary function

M2 bits, M custom code, manual / MDI / automatic mode controls the spindle forward, reverse, stop stop; controlling start and stop of cooling fluid; lubrication control start and stop

Primary shaft function can

Spindle function

Dual spindle

Digital spindle

Spindle 1 support, occupy a digital axis ( not supported by Z axis), and the speed is more stable.

Tapping

stand by

Spindle analog output

Yes , dual spindle

Cutter tool function can

Tool function

Support automatic tool change, support center and center tool setting, three-point centering tool setting

Tool compensation memory

~ 9999.999 -9999.999 , 99 th

Tool compensation

Tool length and radius tool compensation

Edit operation

Editing function

Parameter, diagnostic bit input, program editing, MDI multi-block execution

storage

512M

Stored programs

500 Ge

Program name display

Chinese, English, numbers, combinations

Program line search

Have

Skip optional block

Have

Program switch

Have

display

display

Chinese English

Display of processing time and number of parts

Have

Spindle speed, M / S command

Have

XC709D host size (mm)

Dimensions (height x width x thickness)

328 × 236 × 80

Opening size (height x width)

305 × 207

XC809D host size (mm)

Dimensions (height x width x thickness)

390 × 253 × 80

Opening size (height x width)

370 × 228
